PAYLOADS
FOR FPV DRONES

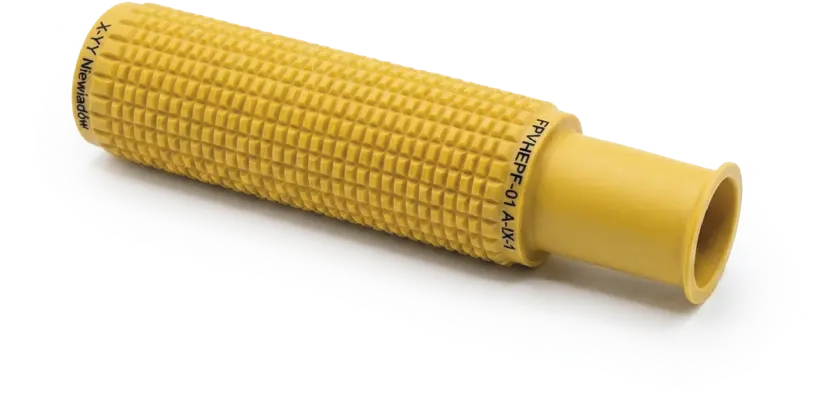

HEPF Payload for FPV

Application

Designed for compact FPV drones to deliver a destructing effect against infantry, vehicles, field fortifications, and infrastructure.

Description

The warhead employs a hardened steel body with a pre-fragmented pattern, providing a high and stable destruction effect. The combination of blast effect and a controlled fragmentation pattern delivers exceptional effectiveness, reliably neutralizing personnel in full equipment, vehicles, and vehicles with light armored protection (STANAG 4569 Level 1), and field fortifications across a wide area with a single detonation. Initiation is handled by a self-powered fuze that ensures a blast on target impact. The fuze runs on a dedicated battery, making the payload completely independent of the drone’s power system.

Features

  • Hardened steel body with pre-fragmented pattern for uniform fragment distribution
  • Autonomous impact fuze with ultra-fast initiation and standalone battery
  • Fuze with two independent safety levels and protection against accidental initiation
  • Compatible with most of the FPV drone frame
  • No external power or arming devices required; safe handling and simple integration
  • Rugged, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance High-Explosive Pre-Fragmented
Warhead Outer Diameter, mm 83
Warhead Weight, kg 4,0 max
Warhead Length, mm 350 max
Quantity of Fragments ≥ 750 of 1,75 g each
Lethal Radius (Heavy Infantry), m ≥ 15
Maximum Effective Fragment Range, m ≤ 30
Radius of Armour Penetratrion
(STANAG 4569 Level 1), m		 ≥ 15
Field Fortification Breach Radius, m ≥ 10
Filling Type RDX-based Composition
Mass of Filling, kg 1,6
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

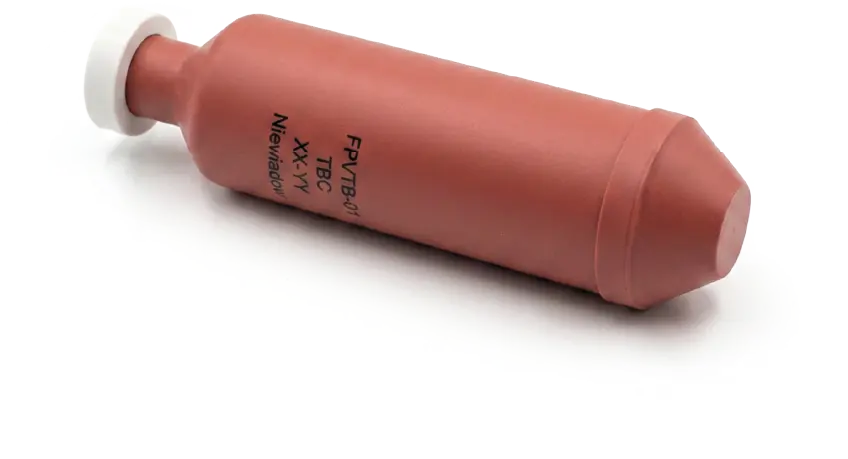

TB Payload for FPV

Application

Purpose-built for FPV drones to neutralize infantry in the open and enclosed strongholds, such as bunkers, buildings, caves, trenches, and fortified rooms.

Description

A warhead, filled with a highly efficient and proven thermobaric composition. The payload’s design ensures the initiation of a two-phase effect: first, a high-explosive detonation forms a cloud of dispersed fuel, which is then instantly ignited to produce a sustained, high-temperature effect. This process is creating a prolonged overpressure and oxygen depletion. Initiation is handled by a self-powered fuze that ensures a blast on target impact. The fuze runs on a dedicated battery, making the payload completely independent of the drone’s power system.

Features

  • Thermobaric composition for prolonged blast overpressure and high-temperature effect
  • Autonomous impact fuze with ultra-fast initiation and standalone battery
  • Fuze with two independent safety levels and protection against accidental initiation
  • Compatible with most of the FPV drone frame
  • No external power or arming devices required; safe handling and simple integration
  • Rugged, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance Thermobaric Blast
Warhead Outer Diameter, mm 75
Warhead Weight, kg 2,0 max
Warhead Length, mm 350 max
Open Terrain Lethal Radius, m 7
Enclosed Space Lethality, m³ 200
Filling Type Thermobaric Composition and RDX-based Composition
Mass of Filling, kg min. 1,3
Operating Conditions from -54°C to +60°C up to 85% RH
Storage from +5°C to +25°C up to 75% RH
Shelf Life 15 years

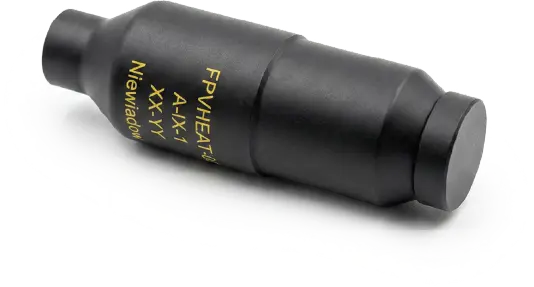

Ultra-Lightweight HEAT Payload for FPV

Application

Designed for precision strikes where minimal collateral damage is important. Ideal for small FPV drones tasked with surgically breaching walls, disabling specific light armored vehicle, destroying high-value equipment inside structures without endangering adjacent rooms or civilians.

Description

The warhead employs a specially developed ultra-lightweight shaped charge optimized for UAV strikes, providing stable penetration despite the minimum diameter and weight. A nose ensures the correct full stand-off distance for jet formation. Initiation is handled by a self-po­wered fuze that ensures a jet formation on target impact. The fuze runs on a dedicated battery, making the payload completely independent of the drone’s power system.

Features

  • UAV-optimized shaped charge for consistent, high penetration
  • Focused jet and minimal blast radius for pin‑point strikes and low collateral damage
  • Autonomous impact fuze with ultra-fast initiation and standalone battery
  • Fuze with two independent safety levels and protection against accidental initiation
  • Lightweight and compatible with any standard FPV drone frame
  • No external power or arming devices required; safe handling and simple integration
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance High-Explosive Anti-Tank
Warhead Outer Diameter, mm 59
Warhead Weight, kg 0,5 max
Warhead Length, mm 230 max
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 200
- Reinforced Concrete 500
- Brick 700
Filling Type RDX-based Composition
Mass of Filling, kg 0,15
Operating Conditions from -54°C to +60°C up to 85% RH
Storage from +5°C to +25°C up to 75% RH
Shelf Life 15 years

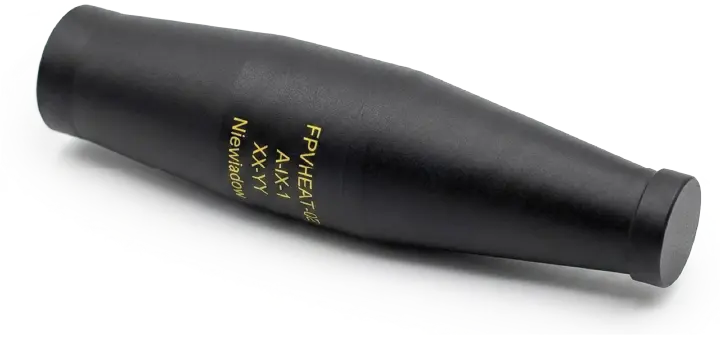

Lightweight HEAT Payload for FPV

Application

Designed for FPV strike drones to engage armored vehicles, fortified positions, and structures.

Description

The warhead employs a specially developed shaped charge optimized for UAV strikes, providing high, stable penetration despite the compact diameter and low weight. A nose ensures the correct full stand-off distance for jet formation. Initiation is handled by a self-powered fuze that ensures a jet formation on target impact. The fuze runs on a dedicated battery, making the payload completely independent of the drone’s power system.

Features

  • UAV-optimized shaped charge for consistent, high penetration
  • Targets light armored vehicles and older tanks at locations without ERA, armored cars, MRAPs, field fortifications
  • Autonomous impact fuze with ultra-fast initiation and standalone battery
  • Fuze with two independent safety levels and protection against accidental initiation
  • Lightweight and compatible with any standard FPV drone frame
  • No external power or arming devices required; safe handling and simple integration
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance High-Explosive Anti-Tank
Warhead Outer Diameter, mm 72
Warhead Weight, kg 1,0 max
Warhead Length, mm 350 max
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 300
- Reinforced Concrete 750
- Brick 1000
Filling Type RDX-based Composition
Mass of Filling, kg 0,35
Operating Conditions from -54°C to +60°C up to 85% RH
Storage from +5°C to +25°C up to 75% RH
Shelf Life 15 years

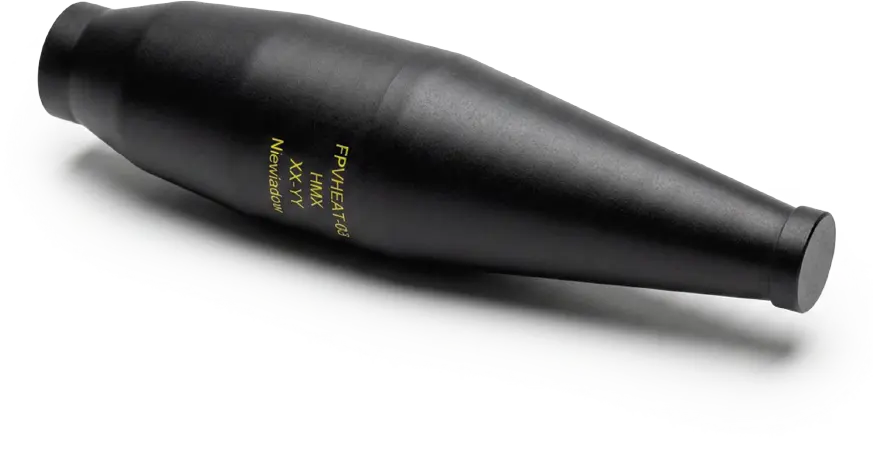

Middleweight HEAT Payload for FPV

Application

Tailored for FPV drones tasked with destroying any armored vehicles without explosive reactive armor (ERA), fortified structures, and concrete pillboxes. Delivers a decisive anti-armor punch at minimal weight, enabling single-drone kills against most of armored threats.

Description

The warhead employs a specially developed shaped charge optimized for UAV strikes, providing high, stable penetration despite the compact diameter and low weight. A nose ensures the correct full stand-off distance for jet formation. Initiation is handled by a self-powered fuze that ensures a jet formation on target impact. The fuze runs on a dedicated battery, making the payload completely independent of the drone’s power system.

Features

  • UAV-optimized shaped charge for consistent, high penetration
  • Targets MBTs at locations without ERA, modern IFVs, reinforced concrete bunkers, and thick‑walled buildings
  • Autonomous impact fuze with ultra-fast initiation and standalone battery
  • Fuze with two independent safety levels and protection against accidental initiation
  • Lightweight and compatible with any standard FPV drone frame
  • No external power or arming devices required; safe handling and simple integration
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance High-Explosive Anti-Tank
Warhead Outer Diameter, mm 72
Warhead Weight, kg 1,0 max
Warhead Length, mm 350 max
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 300
- Reinforced Concrete 750
- Brick 1000
Filling Type RDX-based Composition
Mass of Filling, kg 0,35
Operating Conditions from -54°C to +60°C up to 85% RH
Storage from +5°C to +25°C up to 75% RH
Shelf Life 15 years

WARHEAD INTEGRATION
FOR LOITERING MUNITION

Anti-Personnel Anti-Material Warheads
for Loitering Munition

HEPF Payload

  • Outer Diameter: 83 mm
  • Warhead Weight: 3.5 kg max
  • Warhead Length: 300 mm max
  • Pre‑fragmented steel body consisting of not less than 750 fragments 1.75 g each
  • ≥15 m Heavy Infantry Lethality Radius
  • ≥15 m STANAG 4569 Level 1 Armour Penetration Radius
  • ≤10 m vs Field Fortification Breach Radius
  • Maximum Fragment Effective Range: up to 30 m
  • Fuze powered directly from the carrier
  • Fuze with two independent safety levels and protection against accidental initiation
  • Airburst mode increases fragmentation coverage

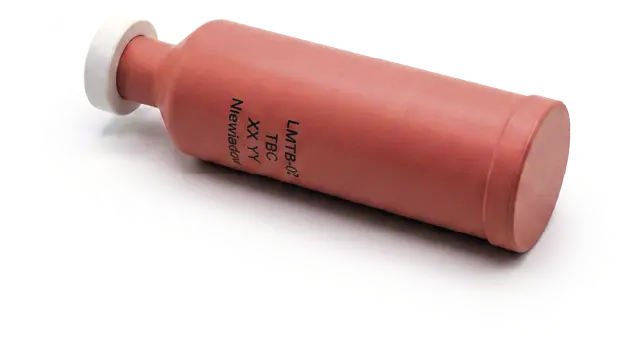

TB Payload

  • Outer Diameter: 75 mm
  • Warhead Weight: 2.0 kg max
  • Warhead Length: 300 mm max
  • Thermobaric composition for prolonged overpressure and high-temperature effect
  • Open Terrain Lethal Radius: 7 m
  • Enclosed Space Lethality: 200 m3
  • Fuze powered directly from the carrier
  • Fuze with two independent safety levels and protection against accidental initiation
  • Airburst mode maximizes coverage

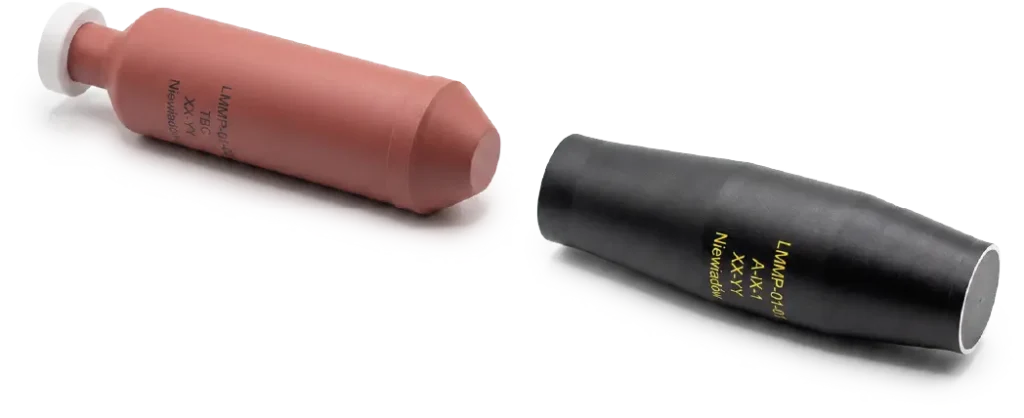

Multipurpose Payload

Application

Purpose‑built for loitering munitions to defeat hardened, sealed, and semi‑sealed targets such as bunkers, fortified buildings, caves, AFVs, and concrete emplacements. Combines precision penetration with an interior and exterior thermobaric blast ideal for missions requiring
a breach‑and‑clear effect in a single strike.

Description

A Tandem Thermobaric warhead with a modular design. The warhead integrates a precursor shaped charge and a main thermobaric charge. On impact, the shaped charge fires first, penetrating at least 300 mm of RHA or breaching a reinforced concrete/brick wall, creating a pathway into the target’s interior. Immediately after, the thermobaric composition is dispersed through the breach and ignited, generating
a sustained, high‑temperature blast wave that fills the enclosed
volume with lethal overpressure and oxygen depletion. The fuze is
powered directly from the drone’s power and is compatible with a nose crush switch.

Features

  • Inside‑target effect: the combined prolonged overpressure, high-temperature effect, and oxygen depletion within the premises
  • Fuze powered directly from the carrier; compatible with a nose crush switch
  • Fuze with two independent safety levels and protection against accidental initiation
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance HEAT and TB
Warhead Outer Diameter, mm 75
Warhead Weight, kg 3,0 max
Warhead Length, mm 550 max
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 300
- Reinforced Concrete 750
- Brick 1000
Open Terrain Lethal Radius, m 7
Enclosed Space Lethality, m³ 200
Filling Type Thermobaric Composition and RDX-based Composition
Mass of Filling, kg min. 1,5
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

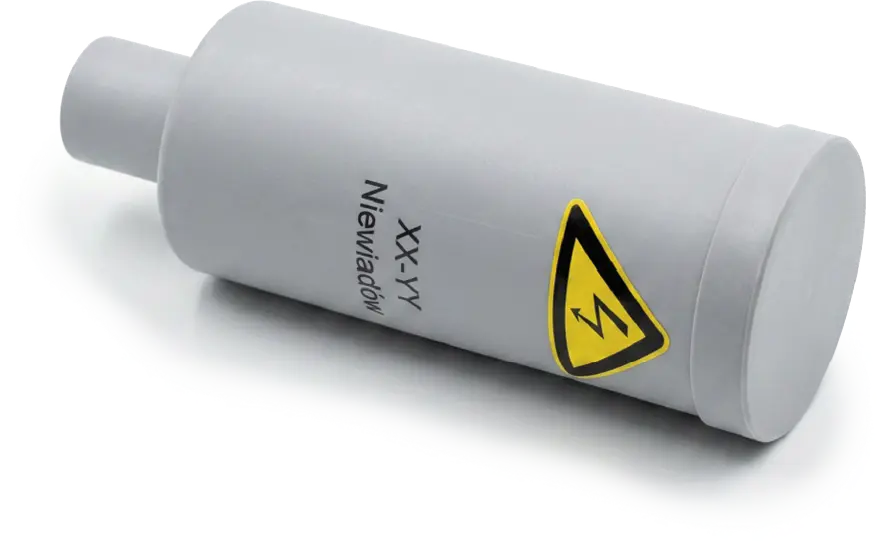

Multipurpose Payload

The Innovative Payload Module is an absolutely new type of effector, designed for integration with UAV platforms, which can be mounted in varying quantities depending on the capabilities of the UAV.

This is an innovative, worldwide premiere solution developed in Poland for countering tasks that are important on the modern battlefield. The payload is intended to create a localized destabilizing effect against equipment and infrastructure without relying primarily on physical destruction. This class of effect is commonly associated with so-called “soft-kill” weapons.

High-Explosive Anti-Tank
Warheads for Loitering Munition

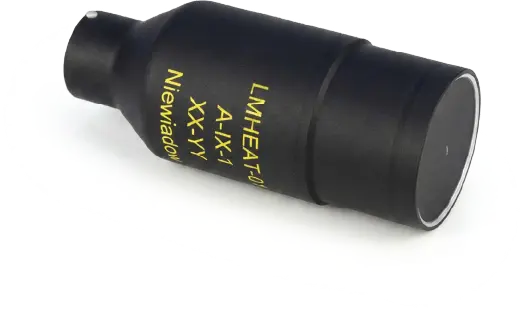

Ultra-Lightweight HEAT Payload

  • Focused jet and minimal blast radius for pin‑point strikes and low collateral damage
  • Suitable for surgical breach of walls, light armor, and vehicles
  • UAV‑optimized shaped charge for stable, highly effective performance
  • Shortened version, free space for a nose‑mounted components
  • Fuze powered directly from the carrier
  • Fuze with two independent safety levels and protection against accidental initiation
  • Compatible with a crush switch installed on the carrier’s nose
Outer Diameter, mm 59
Warhead Weight, kg 0,5 max
Warhead Length, mm 150 max
Penetration Depth, not less than 200 mm RHA
500 mm RC
700 mm brick

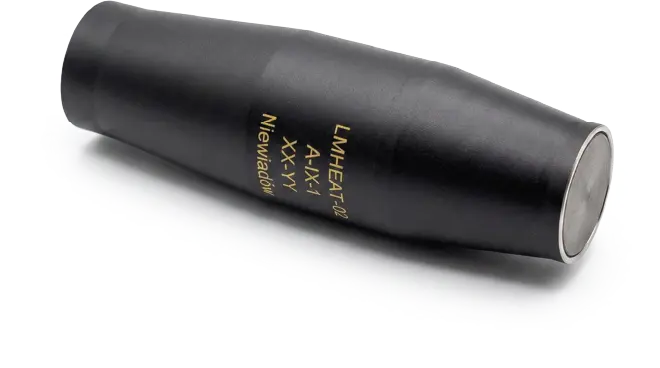

Lightweight HEAT Payload

  • Targets light armored vehicles without ERA
  • UAV‑optimized shaped charge for stable, highly effective performance
  • Shortened version, free space for a nose‑mounted components
  • Fuze powered directly from the carrier
  • Fuze with two independent safety levels and protection against accidental initiation
  • Compatible with a crush switch installed on the carrier’s nose
Outer Diameter, mm 72
Warhead Weight, kg 1,0 max
Warhead Length, mm 300 max
Penetration Depth, not less than 300 mm RHA

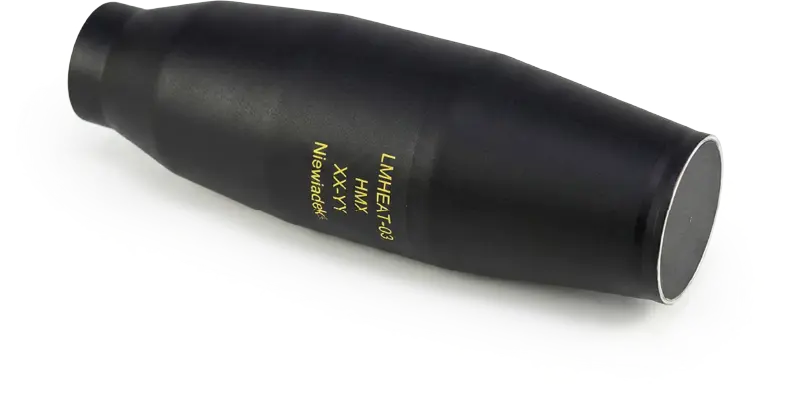

Middleweight HEAT Payload

  • Defeats any armour vehicle without ERA
  • UAV‑optimized shaped charge for stable, highly effective performance
  • Shortened version, free space for a nose‑mounted components
  • Fuze powered directly from the carrier
  • Fuze with two independent safety levels and protection against accidental initiation
  • Compatible with a crush switch installed on the carrier’s nose
Outer Diameter, mm 98
Warhead Weight, kg 2,0 max
Warhead Length, mm 350 max
Penetration Depth, not less than 450 mm RHA

Tandem High-Explosive Anti-Tank
Warheads for Loitering Munition

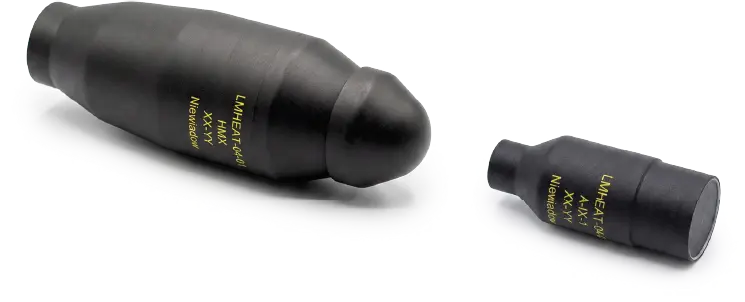

Middleweight
TANDEM HEAT Payload

Application

Tailored for loitering munitions tasked with eliminating armored vehicles protected by explosive reactive armor (ERA), including main battle tanks and heavily protected infantry fighting vehicles.

Description

A Tandem HEAT warhead built with a modular architecture. The precursor charge neutralizes ERA tiles on contact, clearing a path for the main shaped‑charge jet. Both charges feature UAV‑optimized liners that deliver stable, repeatable penetration. Initiation is powered directly from the carrier’s electrical system and is compatible with
a nose‑mounted crush switch, guaranteeing ultra‑fast on‑impact deto­nation.

Features

  • UAV-optimized tandem shaped charge for consistent, high penetration behind ERA
  • Eliminates most of the armoured vehicles consisting an ERA, including certain MBTs and modern heavily protected IFVs
  • Fuze powered from the carrier; compatible with a nose crush switch for fast initiation
  • Fuze with two independent safety levels and protection against accidental initiation
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance Tandem HEAT
Warhead Outer Diameter, mm 98
Warhead Weight, kg 2,5 max
Warhead Length, mm 550 max
Penetration Depth, mm, not less than
- RHA after ERA 450
- RHA without ERA 600
Filling Type HMX-based Composition
Mass of Filling, kg 0,95
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

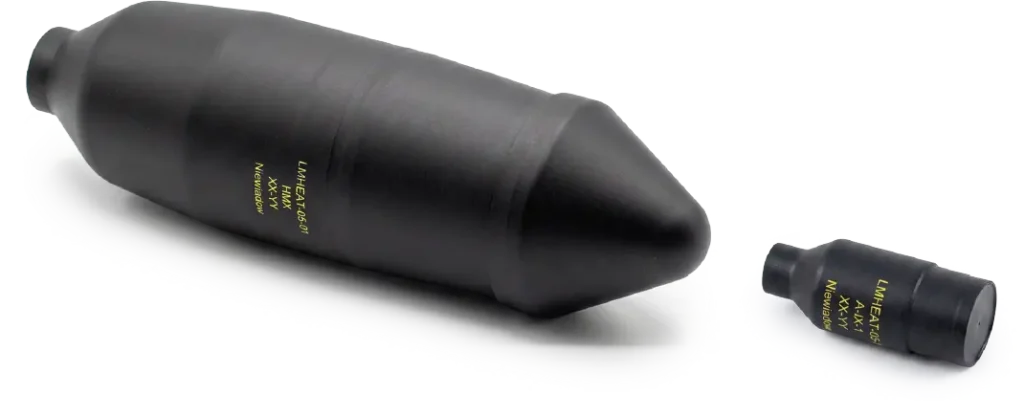

Middleweight
TANDEM HEAT Payload

Application

Purpose‑built for heavy‑lift loitering munitions to destroy any current or future main battle tank regardless of ERA type or coverage. Also employed against heavily fortified command posts, deep‑buried reinforced concrete shelters, and naval/coastal targets.

Description

A Tandem HEAT warhead built with a modular architecture. The precursor charge neutralizes ERA tiles on contact, clearing a path for the main shaped‑charge jet. Both charges feature UAV‑optimized
liners that deliver stable, repeatable penetration. Initiation is powered directly from the carrier’s electrical system and is compatible with
a nose‑mounted crush switch, guaranteeing ultra‑fast on‑impact deto­nation.

Features

  • UAV-optimized tandem shaped charge for consistent, high penetration behind ERA
  • Destroys any current or future MBT regardless of ERA type or coverage
  • Fuze powered from the carrier; compatible with a nose crush switch for fast initiation
  • Fuze with two independent safety levels and protection against accidental initiation
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance Tandem HEAT
Warhead Outer Diameter, mm 150
Warhead Weight, kg 7,0 max
Warhead Length, mm 800 max
Penetration Depth, mm, not less than
- RHA after ERA 800
- RHA without ERA 950
Filling Type HMX-based Composition
Mass of Filling, kg 3,0
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

RPG AND SPG
WARHEADS

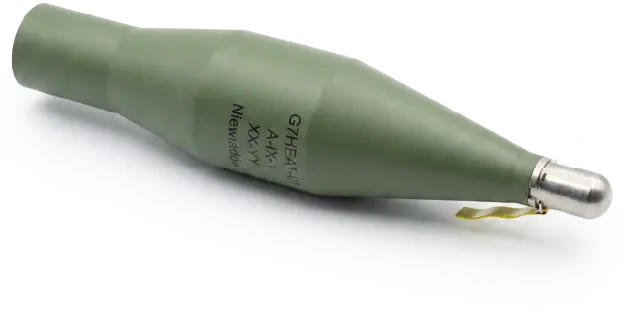

HEAT Warhead
for PG-7VS

Application

Designed as a direct replacement warhead for the PG-7VS round, fired from RPG-7 launchers. It engages battle tanks, light armored vehicles, bunkers, and masonry fortifications.

Description

A HEAT warhead matching the standard mass, external dimensions, and ballistic profile of the PG-7VS round. The shaped charge incorporates a specially developed liner optimized for the RPG-7, providing high and consistently reliable armor penetration despite the compact caliber.
The warhead accepts standard fuzes and mounts seamlessly to the standard rocket motor via the original interface.

Features

  • RPG-7-optimized shaped charge for consistent, high penetration
  • Standard mass, dimensions, and ballistic match, no sight re-calibration needed
  • Compatible with all standard fuzes and rocket motor interfaces
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance High-Explosive Anti-Tank
Warhead Outer Diameter, mm 72
Warhead Weight, Length, CoG, Mounting Elements Same as PG-7VS
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 300
- Reinforced Concrete 750
- Brick 1000
Filling Type RDX-based Composition
Mass of Filling, kg 0,35
Type of Fuze VP-7M
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

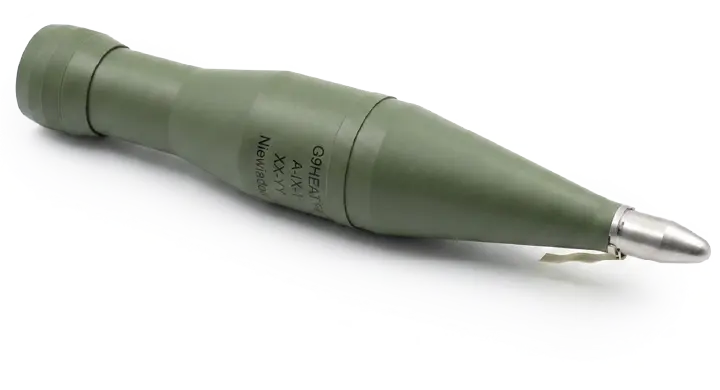

HEAT Warhead
for PG-9VS and PG15VS

Application

Designed as a direct replacement warhead for the standardized 73 mm ammunition, it is used with the SPG-9 tripod-mounted recoilless gun (PG-9VS round) and the 2A28 smoothbore gun mounted on the BMP-1 infantry fighting vehicle (PG-15VS round). It engages battle tanks, armored vehicles, bunkers, and masonry fortifications.

Description

A HEAT warhead matching the standard mass, external dimensions, and ballistic profile of the PG-9V and PG-15V standard ammunition. The shaped charge is optimized for high velocity, providing high and consistent armor penetration. The warhead accepts standard fuzes and mounts directly onto the respective rocket motor using the original interface.

Features

  • Shaped charge optimized for high velocity maintaining consistent and high penetration
  • Standard mass, dimensions, and ballistic match, no sight re-calibration needed
  • Compatible with all standard fuzes and rocket motor interfaces
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Lethal Performance High-Explosive Anti-Tank
Warhead Outer Diameter, mm 73
Warhead Weight, Length, CoG, Mounting Elements Same as PG-9VS
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 300
- Reinforced Concrete 750
- Brick 1000
Filling Type RDX-based Composition
Mass of Filling, kg 0,35
Type of Fuze VP-9M
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

UNIVERSAL SHAPED
CHARGES

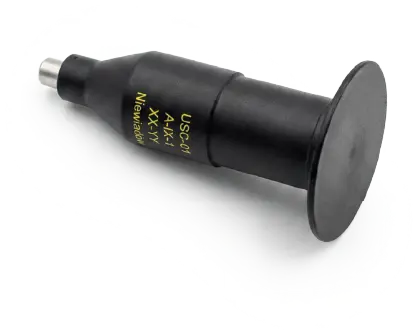

0,5 kg Universal Shaped Charge

Application

Designed for a broad range of combat engineering tasks: rapid creation of single firing positions in hard and frozen ground, breaching of steel, reinforced concrete, brick and masonry structures, destruction
of military equipment, neutralization of explosive and hazardous
objects, and engineering armour testing. Can be employed for
unconventional operations where a lightweight, reliable, and effective shaped charge is required.

Description

The ultra‑lightweight shaped charge placed into an anodised alumi­nium body. The wide, flat base ensures it stands stable on any surface without additional support. Despite containing only 150 grams of explosive, its shaped‑charge achieve remarkable penetration against steel, concrete and brick. Initiation is extremely simple: a standardized electric detonator (eg. I.E.D.), ordinary detonator (S.O.D), or detonating cord is inserted directly into the rear cartridge, ensuring reliable detonation. The charge can be carried, emplaced and fired by a single operator.

Features

  • Minimum explosive mass and standardized initiation options
  • Wide base, ensuring stability on any surface
  • Excellent corrosion resistance and extended shelf life
  • Robust, highly reliable, and safe design
  • Extended shelf life and all-condition operation

Specifications

Effect Shaped Charge Jet
Charge Outer Diameter, mm 59
Charge Weight, kg 0.5 max
Charge Length, mm 200 max
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 200
- Reinforced Concrete 500
- Brick 900
Filling Type RDX-based Composition
Mass of Filling, kg 0,15
Placement Compatibility Steel, Concrete, Wood, Field
Initiation Options Electric Detonator (ed. IED)
or Ordinary Detonator
or Detonating Cord
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years

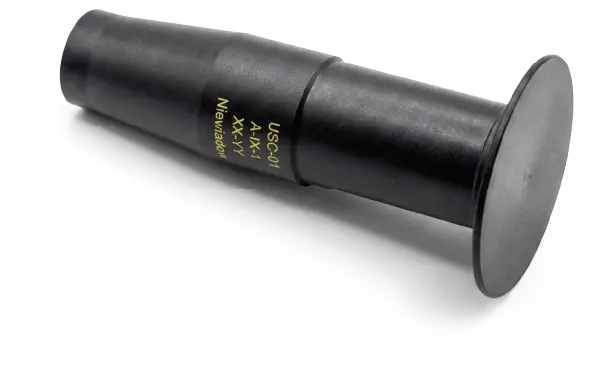

1 kg Universal Shaped Charge

Application

Designed for a broad range of combat engineering tasks: rapid creation of single firing positions in hard and frozen ground, breaching of steel, reinforced concrete, brick and masonry structures, destruction of military equipment, neutralization of explosive and hazardous objects, and engineering armour testing. Can be employed for unconventional operations where a lightweight, reliable, and effective shaped charge is required.

Description

The lightweight shaped charge placed into an anodised aluminium body. The wide, flat base ensures it stands stable on any surface without additional support. A small shaped charge is optimized for outstan­ding penetration for the charge’s weight. Initiation is extremely simple: a standardized electric detonator (eg. I.E.D.), ordinary detonator (S.O.D), or detonating cord is inserted directly into the rear cartridge, ensuring reliable detonation. The charge can be carried, emplaced and fired by a single operator.

Features

  • Small explosive mass and standardized initiation options
  • Wide base, ensuring stability on any surface
  • Robust, highly reliable, safe design with corrosion resistance
  • Extended shelf life and all-condition operation

Specifications

Effect Shaped Charge Jet
Charge Outer Diameter, mm 72
Charge Weight, kg 1,0 max
Charge Length, mm 300 max
Penetration Depth, mm, not less than
- Rolled Homogeneous Armor 300
- Reinforced Concrete 750
- Brick 1300
Filling Type RDX-based Composition
Mass of Filling, kg 0,35
Placement Compatibility Steel, Concrete, Wood, Field
Initiation Options Electric Detonator (ed. IED)
or Ordinary Detonator
or Detonating Cord
Operating Conditions from -54°C to +60°C up to 85% RH
Storage Conditions from +5°C to +25°C up to 75% RH
Shelf Life 15 years
